Audio visual installation Sherburn in Elmet

19 Aug 22 AV Installation Sherburn in Elmet – another completed AV installation this time at The Motorist at Sherburn in Elmet with the install of a Samsung 85″ Display Screen and Samsung 70″ TV upstairs, Samsung 70″ downstairs in the restaurant, two Samsung 65″ Screens in the meeting rooms along with Bose VB1 video conferencing sound bars and a sound system throughout the venue.

Audio visual installation Sherburn in Elmet

We were contracted to install a new audio visual system throughout the Motorist’s newly built venue in Sherburn in Elmet, so we opted to install the following audio and visual system throughout the venue.

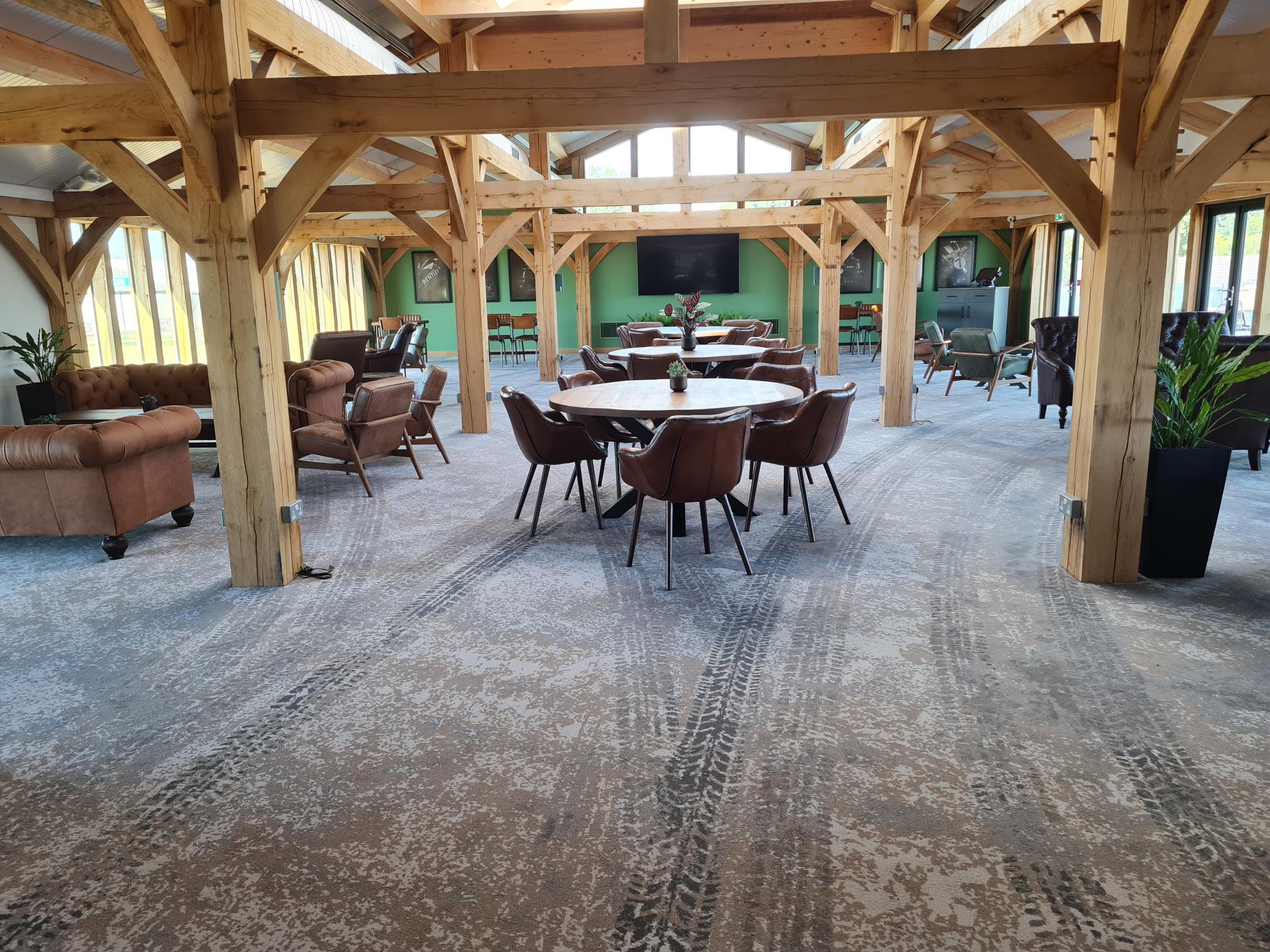

Installed in the main room upstairs we have installed ten white Apart Audio Kubo 5T speakers fitted to the wooden beams at high level out of sight and on the balcony outside we have installed a pair of Kef Ventura 5 IP rated wall mounted speakers, along with an Audio Technica Dual Radio mic system with a Handheld Radio Mic and Lapel Mic.

For the visual installation upstairs we have installed a Samsung 85″ TV screen and Samsung 70″ TV screen which are connected to the Sky Box via Antiference HDMI over CAT6 Senders and Receivers and each TV screen has a local HDMI input plate for local connection.

Within the restaurant area we have install fourteen Cloud CSC5 ceiling speakers throughout along with another five Cloud CSC5 ceiling speakers in the toilet areas and outside we have installed another pair of Kef Ventura 5 IP Rated wall mounted outdoor speakers. These are controlled from the two Cloud RSL6 volume controls behind the bar.

Next to the bar we have installed a Samsung 70″ TV screen which is directly connected to another Sky Box via an Antiference HDMI over CAT6 sender and Receiver kit.

All the control equipment is installed in a storage room and consists of a Cloud Z4 Zoner, Two Cloud CA2250 2 channel amplifiers powering the upstairs and downstairs speakers, a Cloud VA120 4 channel amplifier powering the outdoor speakers, a Cloud VMA120 controlling the Toilet Speakers and the customer supplied us with two media players for the background music.

Within the two new meeting rooms we have installed two Samsung 65″ Display screens along with two Bose VB1 Video Conferencing Soundbars with Mics, Speakers and Camera built in and a local HDMI and USB connection plate.
